EQUIPMENT设备
● 热收缩膜套标机
主机尺寸：3000L x 860W x 2000H mm
主机材质：SUS304 纳米防指纹不锈钢板
重量：约 1000kgs
切标可适应直径范围 ( 刀盘 )：Φ20~Φ50mm，Φ50~Φ90mm，Φ90~Φ130mm, 可根据客户特殊要求定制
可适应收缩膜材质 : PVC, PE, OPS, PET, ETC
切标签高度：20mm ~ 300mm
可适应标签厚度：0.03mm ~ 0.13mm
收缩膜卷纸管内径范围：5〝 ~10〝
速度：250 个每分钟（商标长度约 100mm，标签越长速度随之下降）
电压：AC 3 phases/ 380V
主机最大功率：约 5
EQUIPMENT 设备

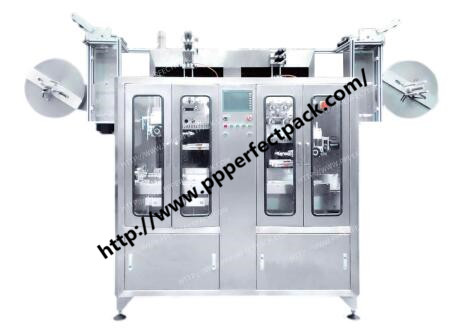

AUTO SLEEVE LABELING MACHINE 热收缩膜套标机
TWIN HEAD PFL-2250 双头套标机 PFL-2250
TECHNICAL PARAMETER
Main machine size: 3000L x 860W x 2000H mm
Weight: about 1000kgs (main machine)
Height: 25mm ~ 300mm
Thickness of label: 0.035mm ~ 0.13mm
Sleeve reel Inner core: 5〝 ~10〝
Voltage: 3 phase / 220V or 380V(can be changed to customer's voltage format)
Consumption power: main machine 5KW
Diameter: Φ25~Φ50mm, Φ50~Φ95mm, Φ95~Φ125mm, one dimension to be choose from three options, special
specification can be made to meet customers’demands.
Speed: Max 36000BPH (Sleeve cut length within 100mm) (The longer the length of the label, the slower the speed,
the accuracy speed should be after testing the client’s bottle sample.)
